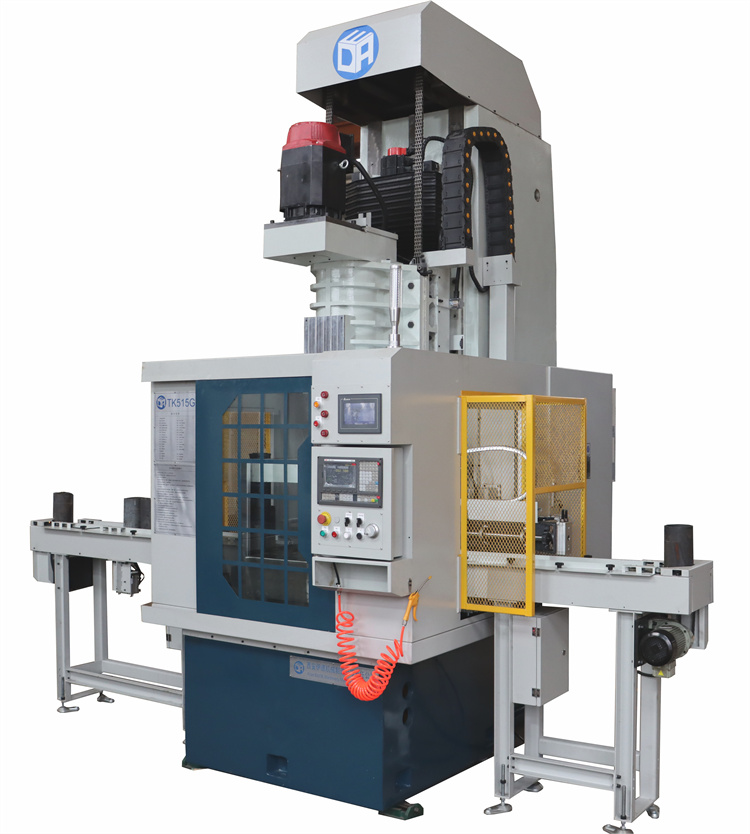

TK515/TK520/TK525/TK530數控高速鏜床

■機床主要部件均采用高強度鑄鐵樹脂砂鑄造，并采用多次時效處理，機床剛性好，精度穩定。

■機床主軸采用高剛性的兩點支撐主軸結構，剛性高，保證加工剛性足，加工精度穩定。

■雙軸控制采用獨立系統，獨立操作面板，可同時完成不同品種工件的加工。

■機床鏜刀桿及刀夾可根據客戶工件要求訂做。刀夾方式靈活多樣，單刀、多刀均可使用。

■具有主軸定向準停功能，方便單鏜刀退刀。

■三色巡視燈便于操作人員觀察機床狀態。

■ Machine main components are made of high-strength cast iron casting resin sand, and several times with aging treatment, machine tool rigidity, accuracy and stability.

■ Spindle supported at two points with high rigidity spindle structure, rigidity high enough to ensure that the processing of rigid, precision and stability.

■ Independent axis control system, an independent panel, to be completed at the same time the processing of different varieties of the workpiece.

■ Machine boring bar toolholder and the workpiece can be customized according to customer requirements. Toolholder flexible and diverse, single-pole, multi-tool can be used.

■ Exact stop having spindle orientation function, convenient single boring tool retract.

■ Tricolor patrol lights to facilitate the operator to observe the machine state.

■一個底座上布置獨立的雙立柱、雙主軸結構，布局合理緊湊，可同時加工兩個或兩種零件，加工效率高，占地面積小，又能減少操作工。

■ One base arranged separate double column, double spindle structure, reasonable layout and compact, it can be processed in two or two parts simultaneously, high efficiency, small footprint, and reducing operator.

■機床采用氣動下壓式夾具、自動定心裝置、前后送料方式，送料滑軌采用直線導軌，液壓油缸推動。可根據客戶要求訂做。

■ Pneumatic pressure clamp, automatic centering device, before and after the feeding mode, feeding linear guide rail, hydraulic cylinders push. It can be customized according to customer requirements.

■機床配置鏈板式排屑器、集屑小車，方便加工鐵屑的收集。

■ Machine configuration chip conveyor chain plate, crumb car, easy to process iron collection.

■主軸滑臺采用滾柱式直線導軌支撐，伺服電機和滾珠絲杠直聯驅動，加工進給快速穩定。

■ Spindle slide support the use of roller linear guide, ball screw and servo motor direct drive, fast and stable machining feed.

■本機床采用全數字式數控系統，易于實現進給過程的分段控制，控制精度高，穩定性好，易于實現加工過程自動化。

■ The machine uses fully digital control system, easy to implement segmented feed process control, control of high precision, good stability, easy to implement process automation.

■主軸旋轉運動采用伺服主軸電機驅動，可實現無級變速。

■ Spindle rotation motion by servo spindle motor drive, can achieve stepless control.

TK515/TK520/TK525/TK530數控高速鏜床 規格參數
