■機床整體架構采用龍門式結構，確保了機床的高剛性和高穩定性。

■機床底座采用分離式水箱設計，方便用戶清理冷卻液沉淀物質。

■主軸往復運動采用高性能液壓伺服閉環控制技術，往復速度可實現無級調速，響應速度快。

■珩磨砂條漲縮裝置為液壓雙進給結構，采用液壓比例控制技術實現壓力閉環控制。

■機床工作臺采用高精度雙工位液壓回轉工作臺，單軸雙工位模式，工作輔助時間為零。

■采用高性能運動控制器，運行穩定可靠。

■集成操作平臺，配置TFT彩色液晶觸控面板。專為珩磨加工定制的人機界面更具人性化。

■集中潤滑系統間歇供油，延長滑動部件使用壽命。

■ Gantry frame of machine ensures high rigidity and stability. The high quality grey cast iron base has good vibration absorbing ability.

■ Machine base using separate water tank design, user-friendly coolant clean up sediment.

■ A high performance hydraulic servo technique which is a closed-loop control of position and speed is used for spindle reciprocation. Therefore infinite variable speed and quick response speed are realized.

■ Honing extension system is in hydraulic double-feed design, in which constant pressure closed-loop control is Ensured by use of proportionally controlled technique.

■ The machine table is duplex hydraulic rotary table, single axis duplex position mode, the work auxiliary time is zero.

■ The machine is controlled by high-performance motion controller, stable and reliable operation.

■ Integrated platform, with TFT liquid crystal color touch panel. The human-machine interface especially made for honing shows humanistic feature.

■ Intermittent oil lubrication system, to extend the service life of the sliding member.

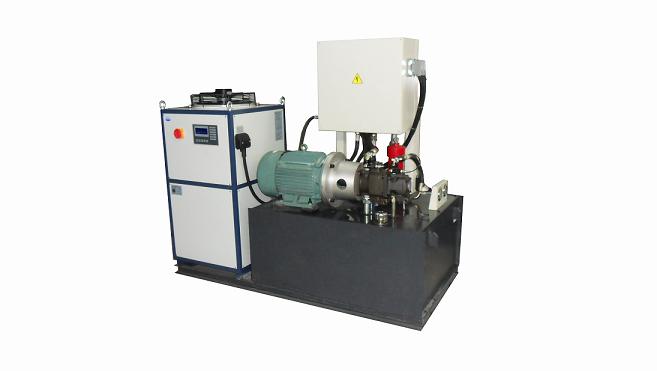

液壓系統采用雙變量泵，主軸往復液壓控制與其他液壓控制分離，并采用油冷機強制冷卻，保證液壓油溫度恒定。
■Double variable pump is used in hydraulic unit. Hydraulic control of spindle reciprocation system is separated from control for other systems. Forced cooling is supplied for hydraulic unit by an oil cooler, which guarantees constant temperature oil.

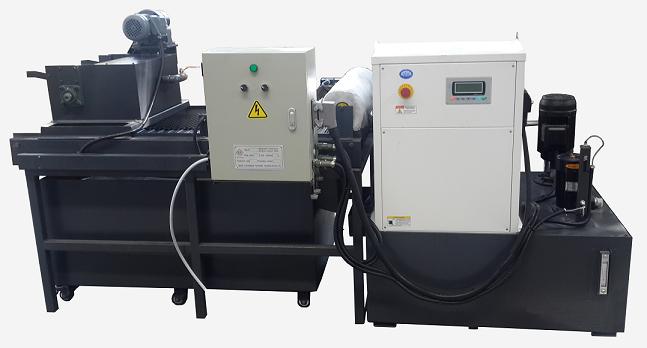

■機床冷卻系統為循環冷卻，采用雙油箱設計，磁分式紙帶過濾機兩級過濾,并使用油冷機強制冷卻。

■ Machine tool cooling cycle cooling system, dual fuel tank design, magnetic tape filter two-stage filtration fraction, and an oil cooler forced cooling.

■機床夾具采用上下移動式膠套包容夾具結構，具有失壓保護檢測裝置，也可訂制油缸壓緊結構式夾具等。

■Up and down moving chucking with inclusive rubber sleeve has voltage loss protection and detection function. Cylinder compressed type of chucking or other tailor-made types may be used.

■機床配置東京計量在線自動測量系統以保證珩磨工件尺寸一致性。

■ Machine configuration online automatic measuring system from Tokyo Seimistu ACCRETECH to ensure honing workpiece size consistency.

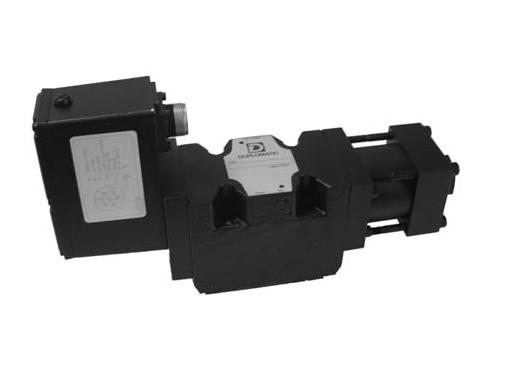

■往復比例伺服閥由力矩馬達驅動，具有良好的動態性能，且不受系統壓力的影響。

■Reciprocally proportional servo valve driven by a torque motor, has a good dynamic performance, and is not affected by system pressure.

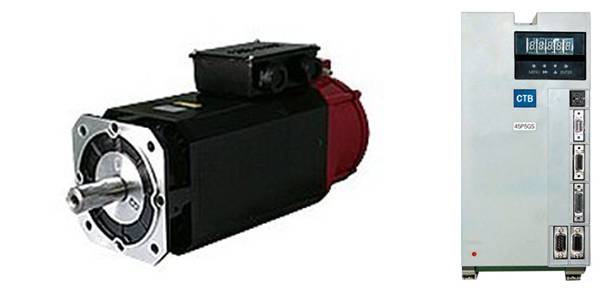

■主軸旋轉運動采用伺服主軸電機驅動，可實現無級變速。主軸轉速通過電機編碼器檢測，實現速度閉環控制。

■The spindle is driven by a servo motor; it rotates and outputs infinite variable speed. Detected by motor encoder, the spindle rotation is a closed-loop control.

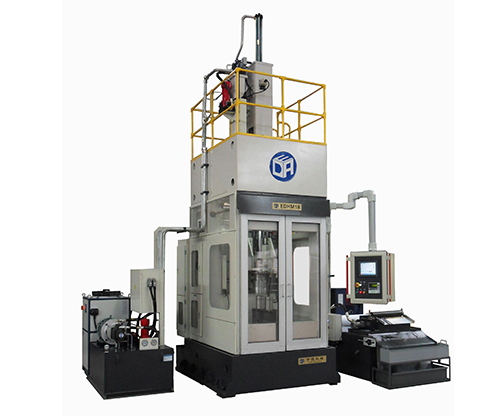

EDHM18系列高性能珩磨機  規格參數
